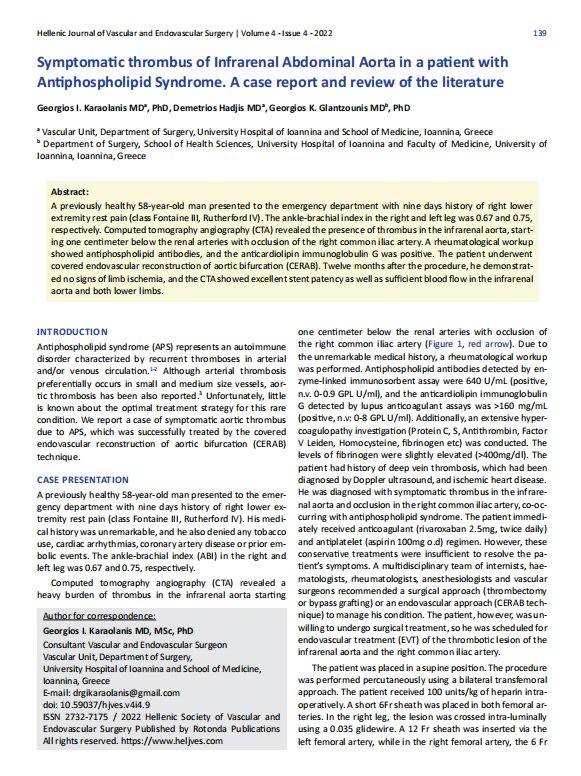

Symptomatic thrombus of Infrarenal Abdominal Aorta in a patient with Antiphospholipid Syndrome. A case report and review of the literature
|Available Online:||April, 2023|
Author for correspondence:
Georgios I. Karaolanis MD, MSc, PhD
Consultant Vascular and Endovascular Surgeon Vascular Unit, Department of Surgery, University Hospital of Ioannina and School of Medicine, Ioannina, Greece
ISSN 2732-7175 / 2022 Hellenic Society of Vascular and Endovascular Surgery Published by Rotonda Publications
All rights reserved. https://www.heljves.com
Georgios I. Karaolanis MDa , PhD, Demetrios Hadjis MDa , Georgios K. Glantzounis MDb , PhD
a Vascular Unit, Department of Surgery, University Hospital of Ioannina and School of Medicine, Ioannina, Greece
b Department of Surgery, School of Health Sciences, University Hospital of Ioannina and Faculty of Medicine, University of Ioannina, Ioannina, Greece
A previously healthy 58-year-old man presented to the emergency department with nine days history of right lower extremity rest pain (class Fontaine III, Rutherford IV). The ankle-brachial index in the right and left leg was 0.67 and 0.75, respectively. Computed tomography angiography (CTA) revealed the presence of thrombus in the infrarenal aorta, starting one centimeter below the renal arteries with occlusion of the right common iliac artery. A rheumatological workup showed antiphospholipid antibodies, and the anticardiolipin immunoglobulin G was positive. The patient underwent covered endovascular reconstruction of aortic bifurcation (CERAB). Twelve months after the procedure, he demonstrated no signs of limb ischemia, and the CTA showed excellent stent patency as well as sufficient blood flow in the infrarenalaorta and both lower limbs.
Antiphospholipid syndrome (APS) represents an autoimmune disorder characterized by recurrent thromboses in arterial and/or venous circulation.1-2 Although arterial thrombosis preferentially occurs in small and medium size vessels, aortic thrombosis has been also reported.3 Unfortunately, little is known about the optimal treatment strategy for this rarecondition. We report a case of symptomatic aortic thrombus due to APS, which was successfully treated by the covered endovascular reconstruction of aortic bifurcation (CERAB) technique.
A previously healthy 58-year-old man presented to the emergency department with nine days history of right lower extremity rest pain (class Fontaine III, Rutherford IV). His medical history was unremarkable, and he also denied any tobacco use, cardiac arrhythmias, coronary artery disease or prior em
bolic events. The ankle-brachial index (ABI) in the right and left leg was 0.67 and 0.75, respectively. Computed tomography angiography (CTA) revealed a heavy burden of thrombus in the infrarenal aorta starting one centimeter below the renal arteries with occlusion of the right common iliac artery (Figure 1, red arrow). Due to the unremarkable medical history, a rheumatological workup was performed. Antiphospholipid antibodies detected by enzyme-linked immunosorbent assay were 640 U/mL (positive, n.v. 0-0.9 GPL U/ml), and the anticardiolipin immunoglobulin G detected by lupus anticoagulant assays was >160 mg/mL(positive, n.v: 0-8 GPL U/ml). Additionally, an extensive hypercoagulopathy investigation (Protein C, S, Antithrombin, Factor V Leiden, Homocysteine, fibrinogen etc) was conducted. The levels of fibrinogen were slightly elevated (>400mg/dl). The patient had history of deep vein thrombosis, which had been diagnosed by Doppler ultrasound, and ischemic heart disease. He was diagnosed with symptomatic thrombus in the infrarenal aorta and occlusion in the right common iliac artery, co-occurring with antiphospholipid syndrome. The patient immediately received anticoagulant (rivaroxaban 2.5mg, twice daily) and antiplatelet (aspirin 100mg o.d) regimen. However, these conservative treatments were insufficient to resolve the patient’s symptoms. A multidisciplinary team of internists, haematologists, rheumatologists, anesthesiologists and vascular surgeons recommended a surgical approach (thrombectomyor bypass grafting) or an endovascular approach (CERAB technique) to manage his condition. The patient, however, was unwilling to undergo surgical treatment, so he was scheduled for endovascular treatment (EVT) of the thrombotic lesion of the infrarenal aorta and the right common iliac artery. The patient was placed in a supine position. The procedure was performed percutaneously using a bilateral transfemoral approach. The patient received 100 units/kg of heparin intraoperatively. A short 6Fr sheath was placed in both femoral arteries. In the right leg, the lesion was crossed intra-luminally using a 0.035 glidewire. A 12 Fr sheath was inserted via the left femoral artery, while in the right femoral artery, the 6 Fr sheath was replaced with a 7 Fr sheath. Angiography through the 12 Fr sheath detected an irregular surface of the infrarenal aorta and occlusion of the right common iliac artery. A 20 mm in diameter and 48 mm in length covered balloon-expandable stent (BeGraft, Bentley, Hechingen, Germany) was deployed below the renal arteries ending approximately 20 mm above the bifurcation. The aortic stent was then molded with short semi-compliant balloons to ensure optimal aortic wall apposition.
Thereafter the iliac stents (10 x 57 mm, BeGraft, Bentley, Hechingen, Germany) were positioned in a kissing conformation, overlapping with the aortic stent for 15mm. Then ballooning with two compliant balloons was performed to adapt the parallel stents to the aortic one. Completion angiography was performed at the end of the procedure to verify the correct deployment of the stents, the apposition of the kissing stents to the aortic one, the patency of renal arteries and CERAB reconstruction.
After the removal of catheters and sheaths, a closure device (Perclose ProGlide Abbott Scientific, Abbott Park, IL) was used to close the arteriotomies in both common femoral arteries. Postoperatively, the patient was treated with rivaroxaban
(2.5mg, twice daily) and acetylsalicylic acid. Twelve months after the procedure, he demonstrated no signs of limb ischemia, with a normal ABI, whilst the CTA showed excellent stent patency as well as sufficient blood flow in the infrarenal aorta and the bilateral lower limbs. (Figure 2).
Antiphospholipid syndrome (APS) is a disorder of coagula tion that is usually manifested by arterial or venous thrombosis or pregnancy-related complications such as miscarriage, stillbirth, preterm delivery, or severe preeclampsia. The syndrome occurs due to the autoimmune production of antibodies against the cell membrane phospholipid.1-2 When the aorta is affected, this scenario often leads to thrombosis. The management of this rare complication varies in the literature, from conservative treatment 4-5 to open 6-7 or endovascular approaches.8 We experienced an extremely rare case of aortic thrombosis due to primary APS, which was successfully treated by the CERAB technique. According to the Sapporo criteria, 8 in patients with triple factors positivity and first unprovoked venous thrombosis, vitamin K antagonists are recommended. In our case, we preferred lifelong rivaroxaban because the patient had two positive factors. To the best of our knowledge, 11 cases have been reported in the literature (table 1), and only one was treated by endovascular means.9 Four cases have been conservatively treated, and their late outcomes are unknown. However, these conservative treatments were insufficient to resolve the patient’s symptoms, according to scarce date in the literature.7 The CERAB technique was introduced in 2013 for treating patients suffering from aortoiliac occlusive disease. The main goal was to reduce some negative impacts of the kissing stents technique, such as the discrepancy between the stented lumen and the aortic lumen (“radial mismatch”), that may affect their patency rate.9 Additionally, this procedure moves
the aortic bifurcation proximally, which mimics the mechanics of a bifurcated graft used in open surgery.10 Results from the largest CERAB series have reported a primary patency rate of about 80% at one year and no peri-procedural mortality.10 Additionally, in cases of isolated infrarenal aortic stenosis, endovascular stenting was reported to have good long-term patency and reduced perioperative mortality rates compared to surgical options.9 As a result, the CERAB technique seems to be a feasible treatment option for APS-associated aortic thrombosis. However, another important aspect to underline is that treating surgeons must be aware that thrombus might dislodge into the renal arteries during treatment of juxta-renal aorto-iliac occlusions or in patients with a distance shorter than 2 cm between the ostium of the renal arteries and the beginning of the aortic lesion. In this perspective, some vascular surgeons have advocated the use of protective measures such as an extra dose of heparin and the position of two guidewires in both renal arteries through the brachial route to be ready to perform prompt angioplasty and stenting if needed. 10
We reported a rare case of symptomatic thrombus of the infrarenal abdominal aorta due to APS. Although the relationship between APS and an isolated infrarenal aortoiliac lesion is still unclear, we speculate that APS might be one of the underlying causes of such conditions. Screening tests should be conducted in this group of patients, especially if their aortacontains a large amount of thrombus and low atherosclerotic burden.
1 Miyakis S, Lockshin MD, Atsumi T, et al. International consensus statement on an update of the classification criteria for definite antiphospholipid syndrome (APS). J Thromb Haemost 2006;4:295-306.
2 Cervera R, Piette JC, Font J, et al. Antiphospholipid syndrome: clinical and immunologic manifestations and patterns of disease expression in a cohort of 1,000 patients.
3 Arthritis Rheum 2002;46:1019-1027. Munoz-Rodriguez FJ, Font J, Cervera R, et al. Clinical study and follow-up of 100 patients with the antiphospholipid syndrome. Semin Arthritis Rheum 1999;29:182-190.
4 Letang E, Rodriguez-Carballeira M, Muchart J, Torres J, Ochoa de Echaguen A, Garau J. Aortic thrombosis in antiphospholipid syndrome. Lupus 2005;14:336-337.
5 Shroff A, Chung HO, Khalidi NA, Spyropoulos A. Antiphospholipid syndrome and the aorta: a rare presentation. J Rheumatol 2011;38:1808-1809.
6 Insko EK, Haskal ZJ. Antiphospholipid syndrome: patterns of life-threatening and severe recurrent vascular complications. Radiology 1997;202:319-326.
7 Toffon A, Piovesan R, Minniti CF, et al. Lower limb ischemia: aortoiliac thrombosis related to antiphospholipid syndrome (APS)—case report and review of the literature. Case Rep Surg 2013;2013:536971.
8 Tektonidou MG, Andreoli L, Limper M, Amoura Z, Cervera R, Costedoat-Chalumeau N, et al. EULAR recommendations for the management of antiphospholipid syndrome in adults. Annals of the Rheumatic Diseases 2019;78:1296.
9 Kadoya Y, Zen K, Oda Y, Matoba S. Successful endovascular treatment for aortic thrombosis due to primary antiphospholipid syndrome. A case report and review of the literature. Vasc Endovasc Surg 2019;53:51-57.
10 Grimme FA, Goverde PC, Verbruggen PJ, et al. Editor’s Choice. First results of the covered endovascular reconstruction of the aortic bifurcation (CERAB) technique for aortoiliac occlusive disease. Eur J Vasc Endovasc Surg 2015;50:638- 647.
